4" Castline Gold Mogami 2524 Guitar Pedal Board Patch Cable TS Low Profile Pancake Connector

Product Code: CL002M1-4

$10.50

2 or more $9.50
4 or more $7.80
6 or more $7.00

Available Options

* Select patch cable type:
- +

4" Patch Cable for Guitar Pedal Board (or for other uses) with 1/4" TS Castline Gold Pancake Low Profile Right Angle Male Connector, and Mogami 2524 Low Noise Cable.

Cables assembled in the USA

*Please Note:  It is possible that you may receive cables with partial or without brand name on the cable as we use rolls and we cut cables continuously.



Connector:

- Castline CT102G

- Black coated back cover (non-conductive)

- 1/4" Pancake mono plug nickel plated.

- Gold plated tip and sleeve for maximum connectivity

- Low profile pancake design.



Cable:

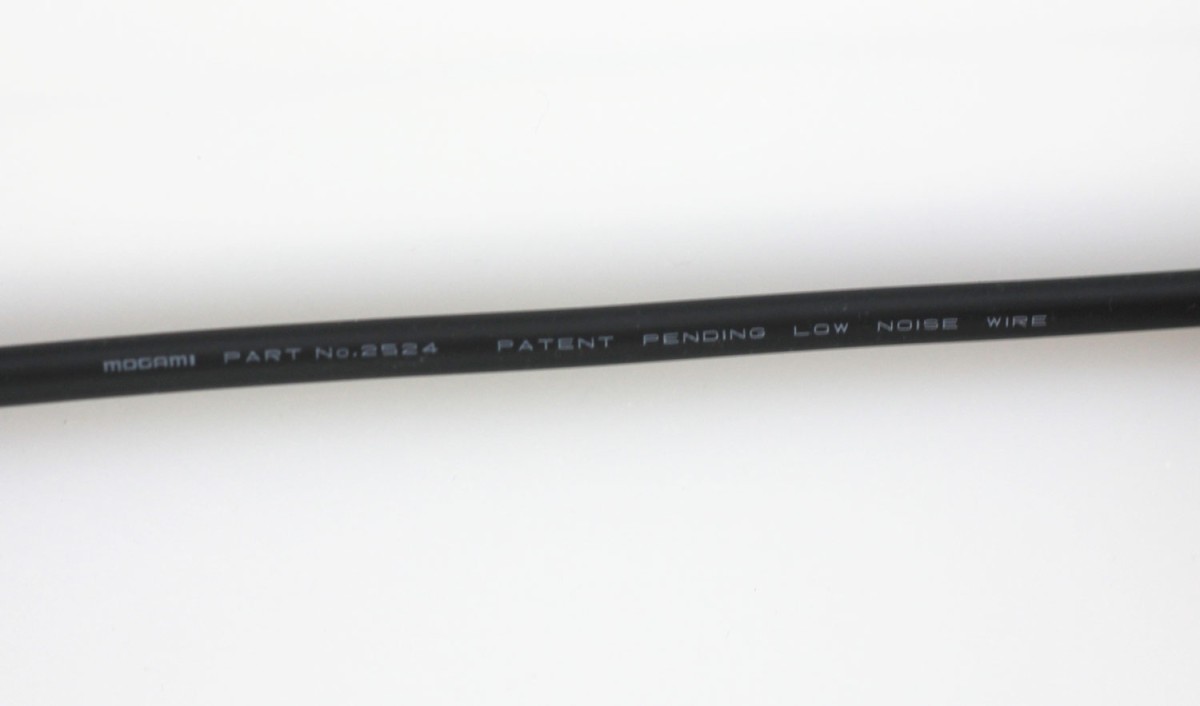

- Mogami W2524 Low Noise Wire

- Copper Conductor -20 AWG

- Cable Diameter: 6.0mm (0.236")

- Flex Life: 15000 Cycles

Cable characteristics
Cable diameter (mm): 6.0Ø (0.236 inch)
Cable Part No. : Mogami W2524
Cable type: Unbalanced
Color: Black
Conductor material: Copper
Conductor size: 0.565mm² (#20AWG)
Flex life: 15000
No. of conductor: 1
Tensile strength: 578 N
Connector characteristics
Connector part No. : CT102G
Connector type: T1/4 S
Contacts coating: Tip and Sleeve- gold plated/ Sleeve- nickel plated
