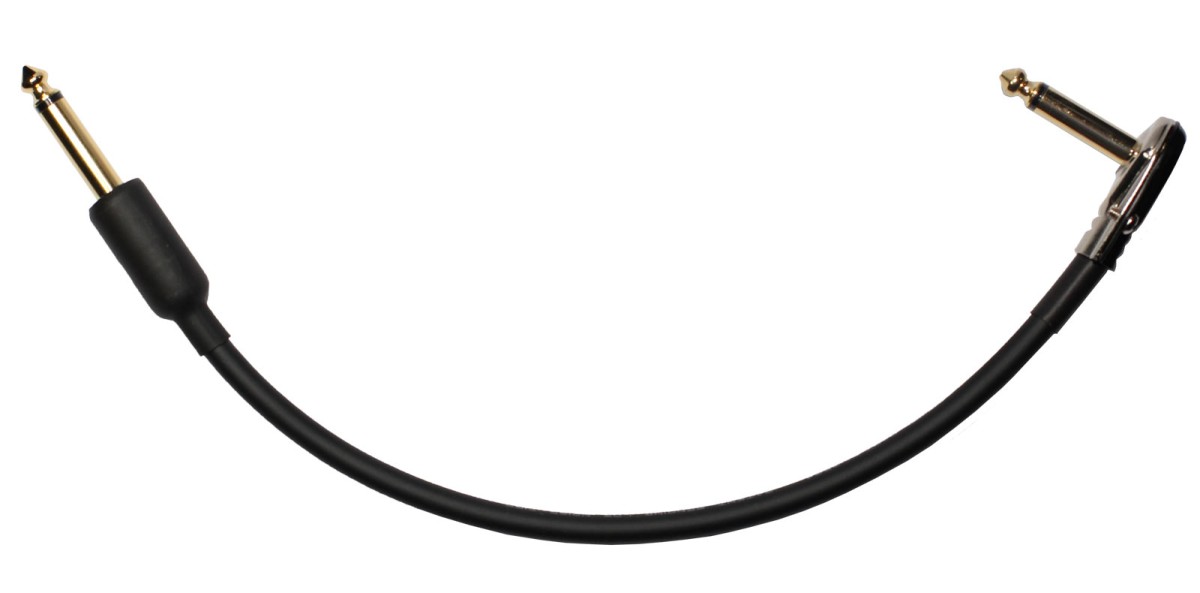

2 Ft Patch Cable for Guitar Pedal Board (or for other uses) with 1/4" TS Castline Gold Pancake Low Profile Right Angle Male Connector and 1/4 TS 1 inch Barrel Connector. Mogami 2524 Low Noise Cable.
Cables assembled in the USA
Please contact us if you have special requests.
*Please Note: It is possible that you may receive cables with partial or without brand name on the cable as we use rolls and we cut cables continuously.
Connectors:
- Castline CT102G
- Black coated back cover (non-conductive)
- 1/4" Pancake mono plug nickel plated.
- Gold plated tip and sleeve for maximum connectivity
- Low profile pancake design.
- Castline CT112G
- 1/4" Pancake mono plug gold plated.
- 1 inch short barrel connector
- Gold plated tip and sleeve for maximum connectivity
Cable:
- Mogami W2524 Low Noise Wire
- Copper Conductor -20 AWG
- Cable Diameter: 6.0mm (0.236")
- Flex Life: 15000 Cycles
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 6.0Ø (0.236 inch) |
| Cable Part No. : | Mogami W2524 |
| Cable type: | Unbalanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.565mm² (#20AWG) |
| Flex life: | 15000 |
| No. of conductor: | 1 |
| Tensile strength: | 578 N |
| Connector characteristics | |
| Connector part No. : | CT102G; CT112G |
| Connector type: | 1/4 TS |
| Contacts coating: | Tip and Sleeve- gold plated |
