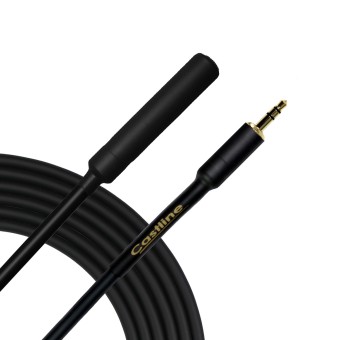

Castline Gold patch cable 3.5mm TRS-straight to 1/4" TRS-female. 3.5mm TRS stereo connectors CT109G, 1/4" TRS female CT106GF, and Mogami OFC Neglex W2549 .
Mogami W2549 has been designed using famous Mogami Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.
Cables Made in the USA
*If you need this cable in another length please contact us.
Connector:
- Model: Castline CT109G
- 3.5mm TRS Stereo Gold Plated (for maximum connectivity)
- Heavy Duty Design.
- Model: Castline CT106GF
- 1/4" TRS Stereo Gold Plated (for maximum connectivity)
- Heavy Duty Design.
Cable:
- Mogami W2549 OFC Neglex Microphone Wire, Made in Japan.
- 2 Coper Conductors -22 AWG
- Cable Diameter: 6.0mm (0.236")
- Flex Life: 14500 Cycles.
- Tensile Strength: 657 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 6.0ø (0.236 inch) |
| Cable Part No. : | Mogami W2549 Neglex |
| Cable type: | Balanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.339mm² (#22AWG) |
| Flex life: | 14500 |
| No. of conductor: | 2 |
| Tensile strength: | 657 N |
| Connector characteristics | |
| Connector part No. : | CT109G; CT106GF |
| Connector type: | TRS stereo male |
| Contacts coating: | Gold plated |
