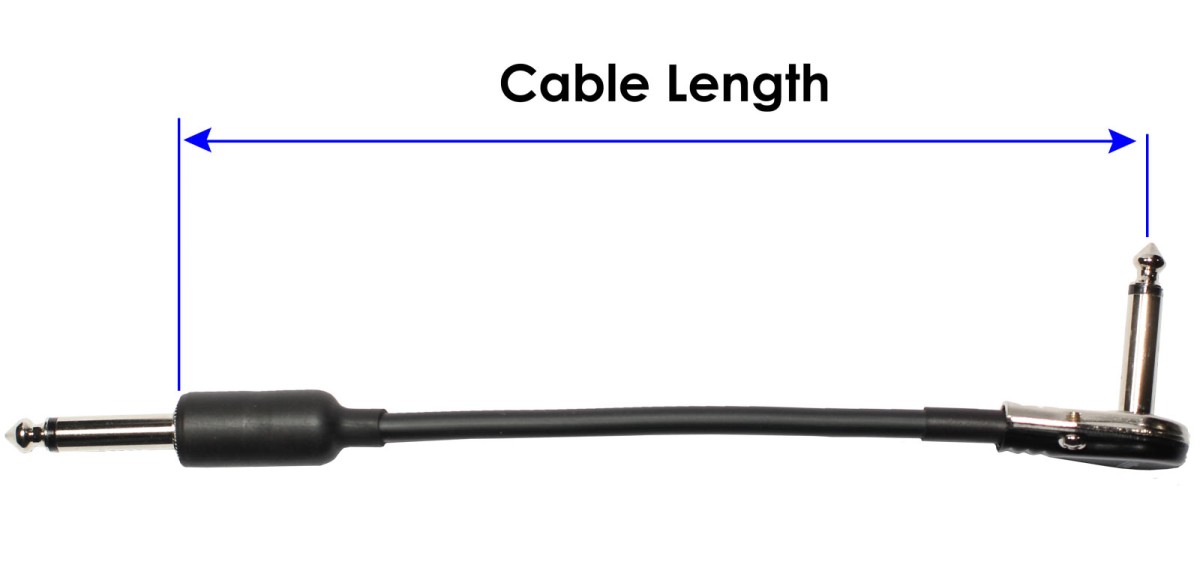

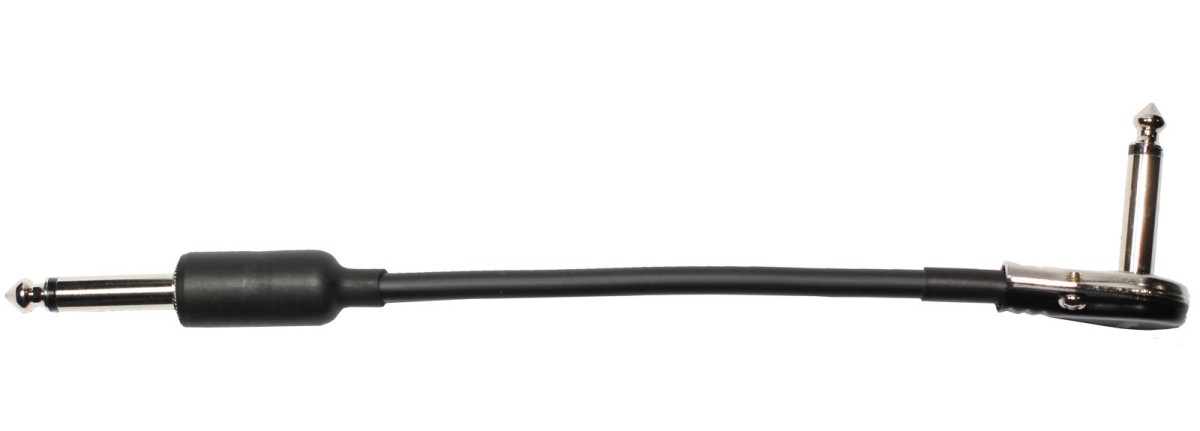

8" Patch Cable for Guitar Pedal Board (or for other uses) with 1/4" TS Castline Silver Pancake Low Profile Right Angle Male Connector and 1/4 TS Short Barrel Connector. Mogami 2319 Low Noise Cable.
Cables assembled in the USA
Please contact us if you have special requests
*Please Note: It is possible that you may receive cables with partial or without brand name on the cable as we use rolls and we cut cables continuously.
Connector:

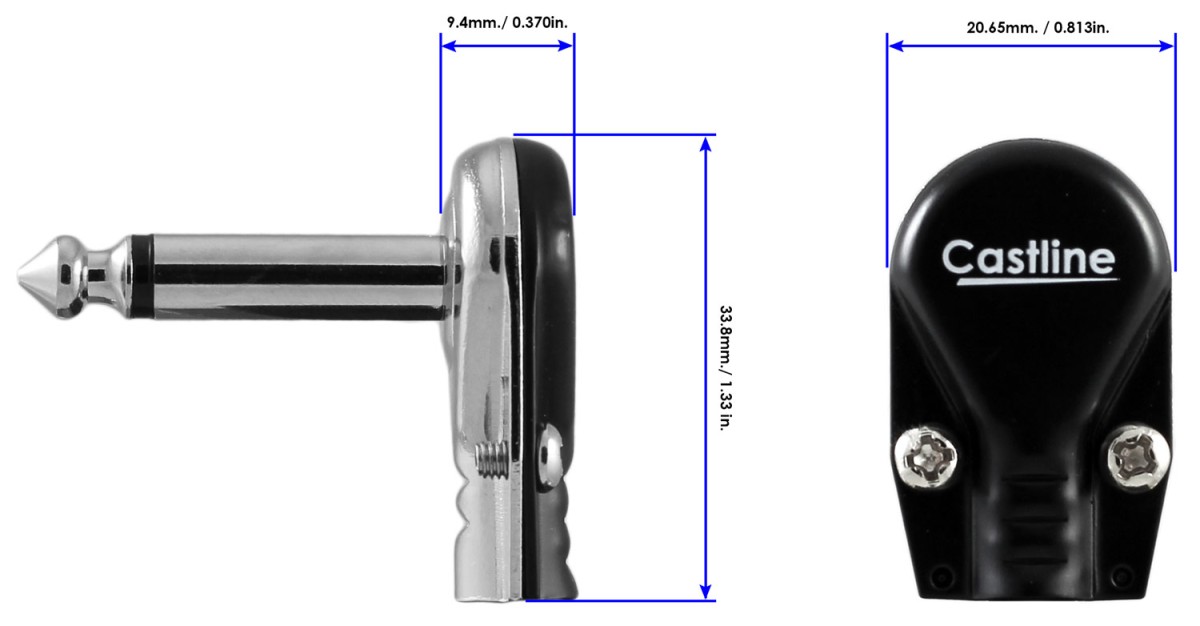

- Castline CT101S
- Black coated back cover (non-conductive)
- 1/4" Pancake mono plug nickel plated
- Low profile pancake design.
- Castline CT112S
- 1/4" Pancake mono plug nickel plated
- 1 inch short barrel connector.
Cable:
- Mogami W2319 Low Noise Wire
- Tinned Copper Conductor -23 AWG
- Cable Diameter: 5.0mm (0.197")
- Flex Life: 11000 Cycles
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 5.0Ø (0.197 inch) |
| Cable Part No. : | Mogami W2319 |
| Cable type: | Unbalanced |
| Color: | Black |
| Conductor material: | Tinned copper |
| Conductor size: | 0.305mm² (#23AWG) |
| Flex life: | 11000 |
| No. of conductor: | 1 |
| Tensile strength: | 303 N |
| Connector characteristics | |
| Connector part No. : | CT101S; CT112S |
| Connector type: | 1/4 TS |
| Contacts coating: | Nickel plated |
