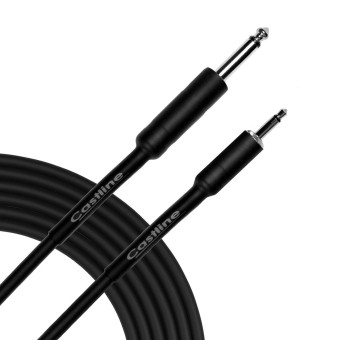

Castline Silver cable 1/4" TS-straight to 3.5mm TS-straight . 1/4" TS mono connector CT103S and 3.5mm mono connector CT108S. Mogami W2582 flexible low nose wire (XLPE insulation and a strong rubber - like outer jacket makes this cable ideal where a durable and flexible cable is needed)
Cables assembled in the USA
*If you need this cable in another length please contact us.
Per your request black TechFlex Braided sleeve can be added the cost is .70 cents per foot. Please, write a message and we will send an offer.
Connector:
- Model: Castline CT103S
- 1/4" TS Mono Plug Nickel Plated
- Heavy Duty Design.
- Model: Castline CT108S
- 3.5mm TS Mono Plug Nickel Plated
- Heavy Duty Design.
Cable:
- Mogami W2582 Low Nose Wire Made in Japan
- 2 Copper Conductors -26 AWG
- Cable Diameter: 6.0mm (0.236")
- Flex Life: 13800 Cycles.
- Tensile Strength: 441 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 6.0ø (0.236 inch) |
| Cable Part No. : | Mogami W2582 Low Noise Wire |
| Cable type: | Unbalanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.135mm² (#26AWG) |
| Flex life: | 13800 |
| No. of conductor: | 2 |
| Tensile strength: | 441 N |
| Connector characteristics | |
| Connector part No. : | CT103S / CT108S |
| Connector type: | TS- mono, male |
| Contacts coating: | Nickel plated |
