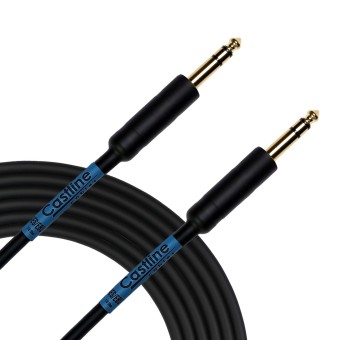

Castline Gold AES/EBU DMX digital audio cable, 1/4" TRS connectors.
All cables Made in the USA
Mogami W3080 AES/EBU & DMX digital cable has been designed to provide you with the quality you need to best match the performance of your digital equipment. Since AES/EBU digital audio cable is low capacitance characteristics, it can result in high quality analog audio transmission in general especially for high frequency range.
110-ohm cable minimizes signal reflections for accurate data transfer
Suggested maximum applicable length: 150m (492Ft)
*If you need this cable in another length please contact us.
Connectors:
- Model: Castline CT106G
- 1/4" TRS Stereo Gold Plated Tip and Sleeve (for maximum connectivity)
- Heavy Duty Design.
Cable:
- Mogami W3080 AES/EBU & DMX Wire. Made in Japan.
- 2 Coper Conductors -25 AWG
- Cable Diameter: 5.0mm (0.197")
- Flex Life: 10000 Cycles.
- Tensile Strength: 343 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 5.0ø (0.197 inch) |
| Cable Part No. : | Mogami W3080 AES/EBU 110 Ohm |
| Cable type: | Balanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.178mm² (#25AWG) |
| Flex life: | 10000 |
| No. of conductor: | 2 |
| Tensile strength: | 343 N |
| Connector characteristics | |
| Connector part No. : | CT106G |
| Connector type: | 1/4" TRS |
| Contacts coating: | Gold plated |
