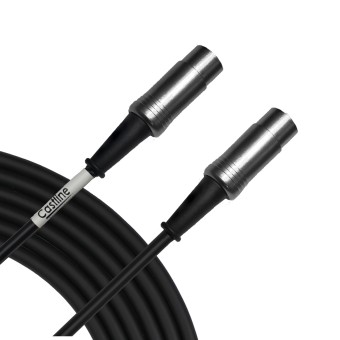

Castline Gold MIDI Syncro 5-pin DIN Male Cable Mogami W2948
Made in the USA
*Also, we can make custom length or cable wiring suitable for your application ( like vintage audio equipments, etc.). Please write us the message.
Castline MIDI SYNCHRO CABLE ASSEMBLIES are specially designed for use with the Musical Instrument Digital Interface (MIDI) communication system. Applications include the latest MIDI patchbays, and interconnection between MIDI equipment and MIDI served musical instruments.
Specially designed, superflexible cable with four #25AWG copper conductors and served (spiral) shield.
Fast, accurate transmission of MIDI signal via a twisted pair for better electromagnetic noise rejection.
Connectors:
- Model: NYS322G
- 5-Pin 180° DIN.
- 5-Pin Gold Plated Connectors for Maximum Connectivity.
- Heavy Duty Metal, Plastic and Polyurethane Construction.
- Boot with polyurethane gland gives high protection to cable bending stresses.
Cable:
- Mogami W2948 MIDI Wire. Made in Japan
- 4 Coper Conductors -26 AWG
- Cable Diameter: 5.0mm (0.197")
- Flex Life: 6700 Cycles.
- Tensile Strength: 480 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 5.0ø (0.197 inch) |
| Cable Part No. : | Mogami W2948 |
| Cable type: | MIDI digital |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.15mm² (#26AWG) |
| Flex life: | 6700 |
| No. of conductor: | 4 |
| Tensile strength: | 480 N |
| Connector characteristics | |
| Connector part No. : | NYS322G |
| Connector type: | 5- pin 180° DIN |
| Contacts coating: | Gold plated |
