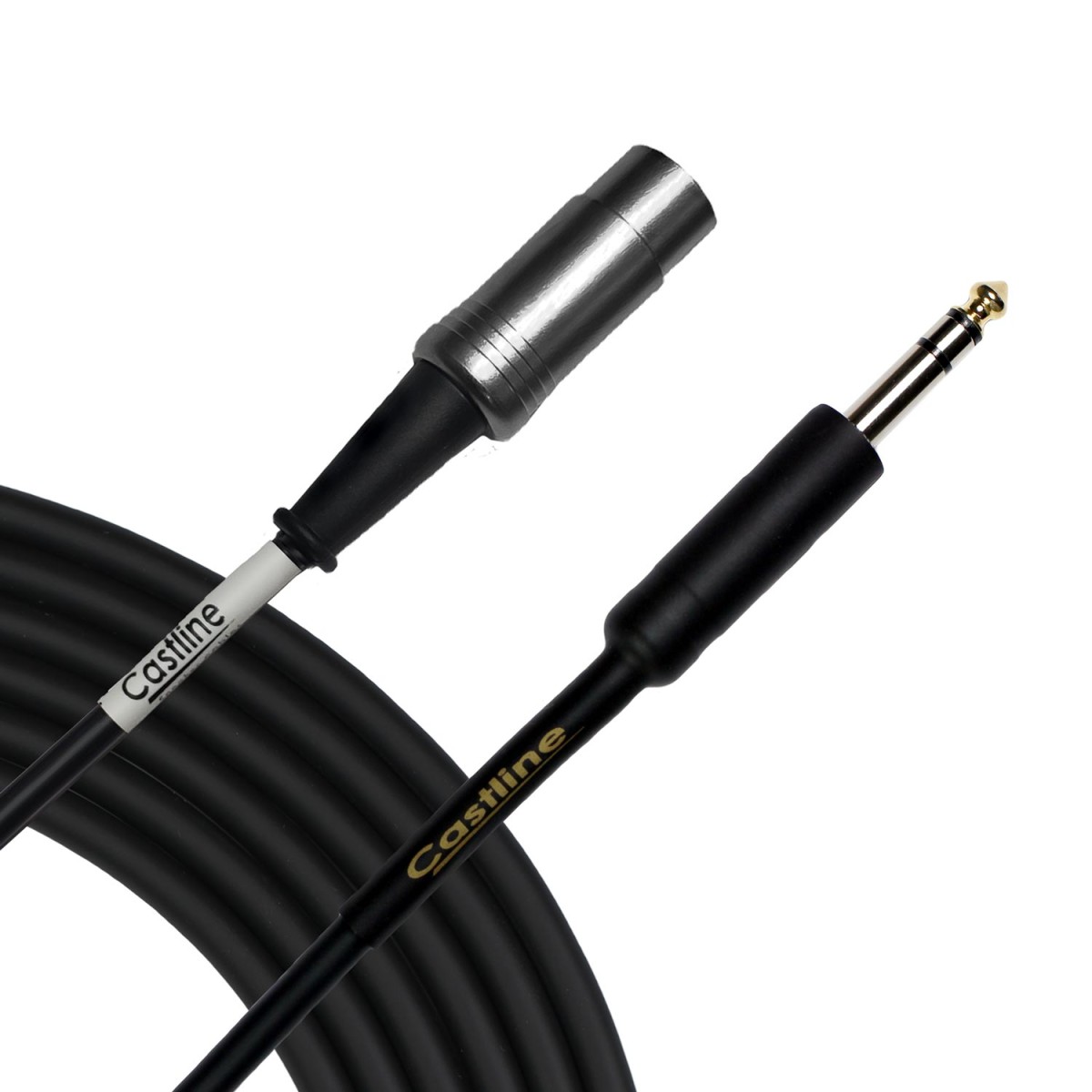

Castline Gold Type A MIDI 5-pin DIN Male to TRS Cable Mogami W2948

Made in the USA

Please, confirm before purchase is the type of wiring used by the company. You can find this information in the user manual or contact the manufacturer of the device with the TRS jack

Type A, used by:   Korg, Line 6, BOSS, Akai Pro, inMusic, Pirate MIDI, IK Multimedia, littleBits, Make Noise, Empress, Teenage Engineering, Meris, Eventide, Alexander, Bondi, Swindler, ADDAC Systems, Disaster Area (micro.clock multijack), Strymon (Riverside and Sunset).

*Also, we can make custom length or cable wiring suitable for your application ( Chase Bliss Pedals, TS connector instead of TRS etc.). Please write us the message.

Castline MIDI are specially designed for use with the Musical Instrument Digital Interface (MIDI) communication system. Applications include the latest MIDI patchbays, and interconnection between MIDI equipment and MIDI served musical instruments.

Specially designed, superflexible cable with four #25AWG copper conductors and served (spiral) shield.
Fast, accurate transmission of MIDI signal via a twisted pair for better electromagnetic noise rejection.

Connectors:

- Model: NYS322G

-  5-Pin 180° DIN.

-  5-Pin Gold Plated Connectors for Maximum Connectivity.

-  Heavy Duty Metal, Plastic and Polyurethane Construction.

-  Boot with polyurethane gland gives high protection to cable bending stresses.

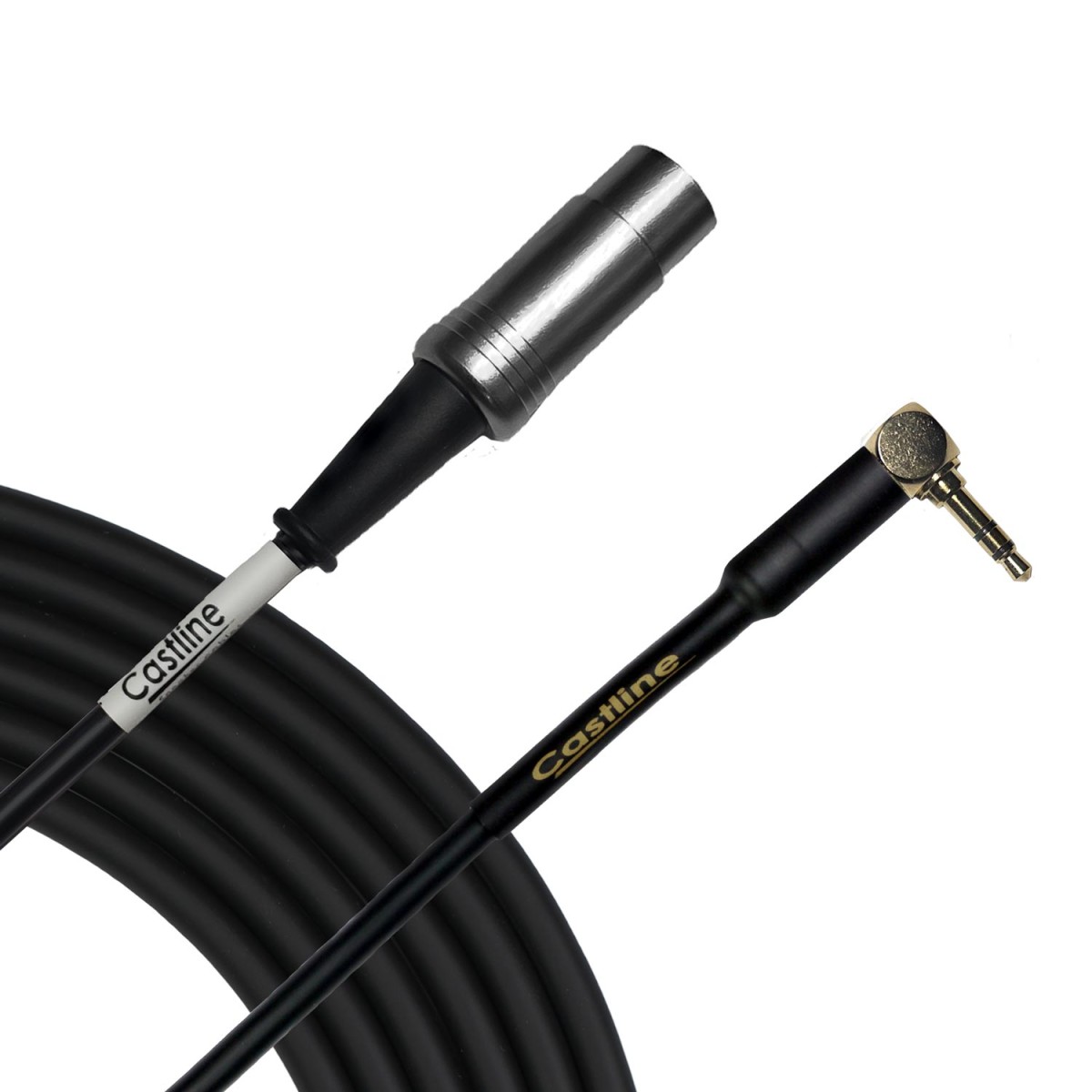

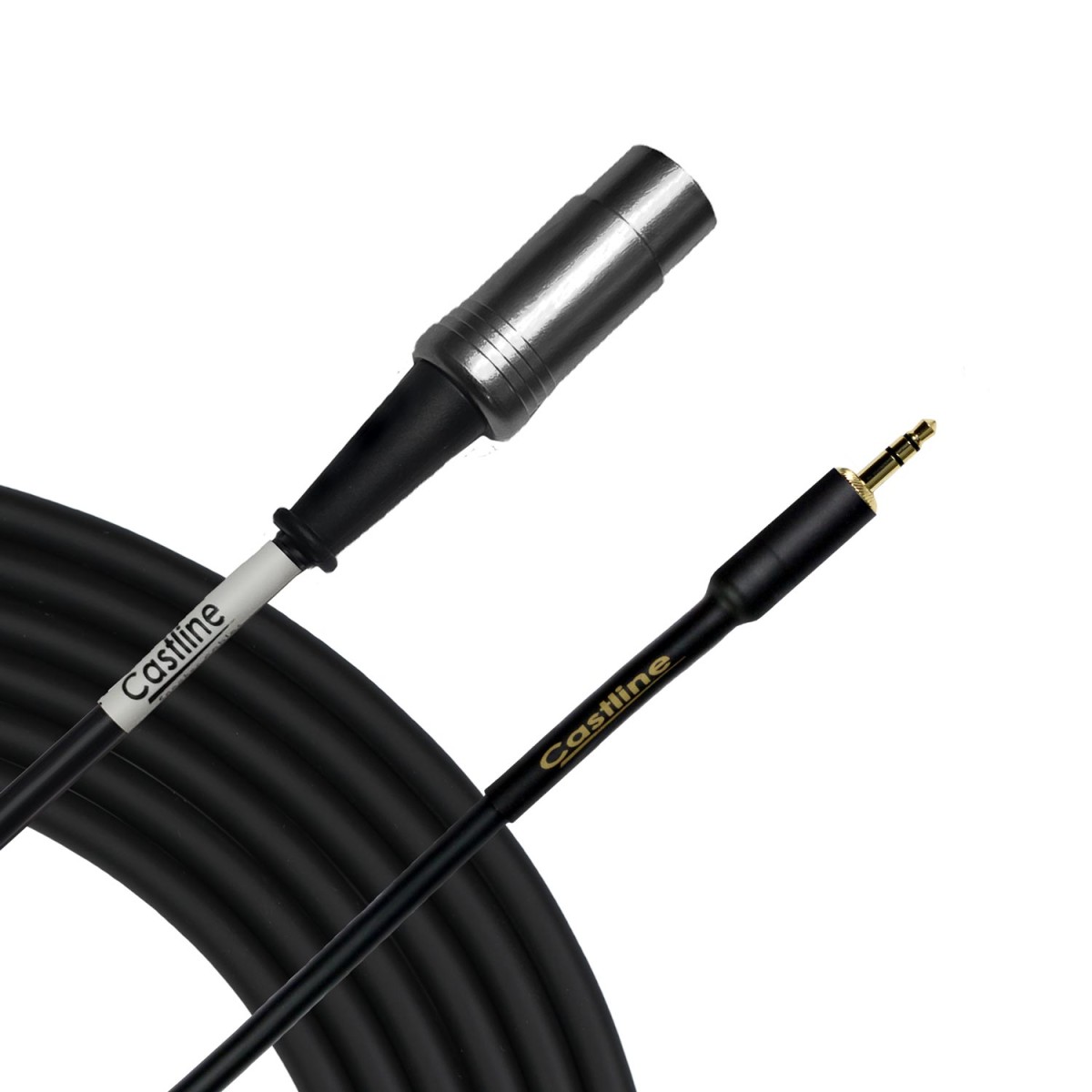

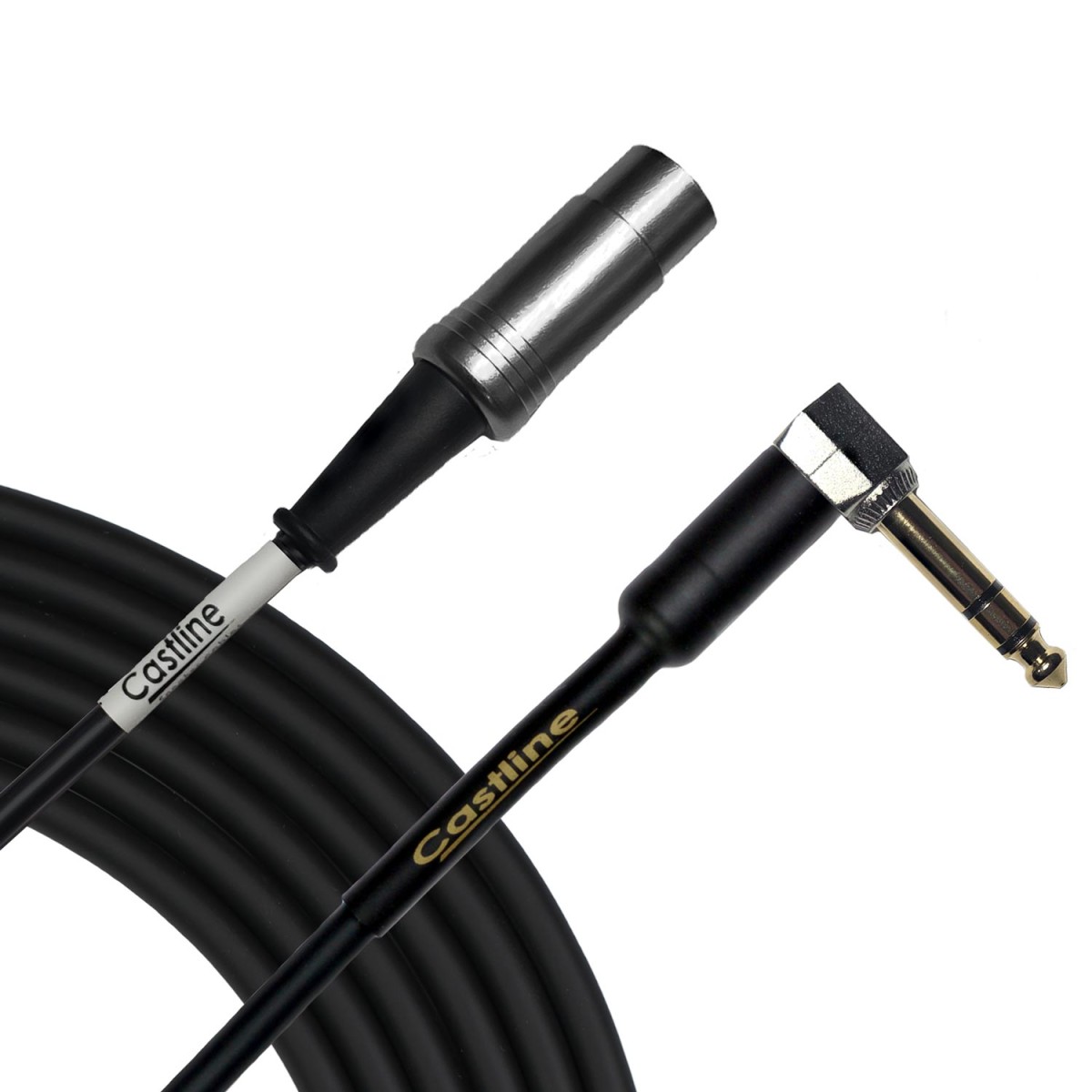

-1/4" and 1/8" TRS Stereo Connectors with Gold Plated Tip, Ring and Sleeve (for maximum connectivity)

- Heavy Duty Design.

Cable:

- Mogami W2948 MIDI Wire. Made in Japan

- 4 Coper Conductors -26 AWG

- Cable Diameter: 5.0mm (0.197")

- Flex Life: 6700 Cycles.

- Tensile Strength: 480 N

(Please see the last image for full specifications)
