No Hum. No Frequency Loss. No Hardware Damage

Made in the USA

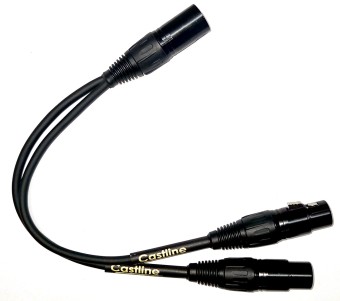

1 Ft Castline Gold Balanced Summing Y-Cable XLR Male to Dual XLR Female Mogami 2552 with RESISTORS

Made with: 3-Pin XLR connectors with gold plated pins. Resistors R1- 20 kOhm and R2- 470 Ohm. Mogami W2552 wire extremely limp and flexible cable for all types of audio/visual and industrial audio applications. XLPE insulation and a strong rubber jacket

Balanced summing Y-cables with resistors are specialized audio cables used to combine two separate balanced audio outputs (like Left and Right) into a single balanced input (Mono) without using a mixing board.

Examples of cable application:

Stereo sources (two inputs): Studio Audio Interfaces & Playback Units; Stage Keyboards & Synthesizers; Guitar Modelers & Profilers etc.

The mono destinations (single output):  Powered Stage Monitors & FRFR Wedges; Commercial Zone Amplifiers; Live Mixing Board Channels; Field Recorders & Broadcast Transmitters etc.

DO NOT USE: Directly with Microphones; From Headphone Jacks or Speaker Outputs; Between Two Different, Unlinked Audio Sources; With Phantom Power (+48V).

Connectors:

- Model: CT105G

-  Castline XLR-M, XLR-F Gold.

-  3-Pin Gold Plated Connectors for Maximum Connectivity.

-  Heavy Duty Metal, Plastic and Polyurethane Construction.

-  Boot with polyurethane gland gives high protection to cable bending stresses.

Cable:

- Mogami W2552 Neglex Microphone Wire, Made in Japan.

- 2 Coper Conductors -25 AWG

- Cable Diameter: 5.0mm (0.167")

- Flex Life: 11000 Cycles.

- Tensile Strength: 421 N
