No Hum. No Frequency Loss. No Hardware Damage

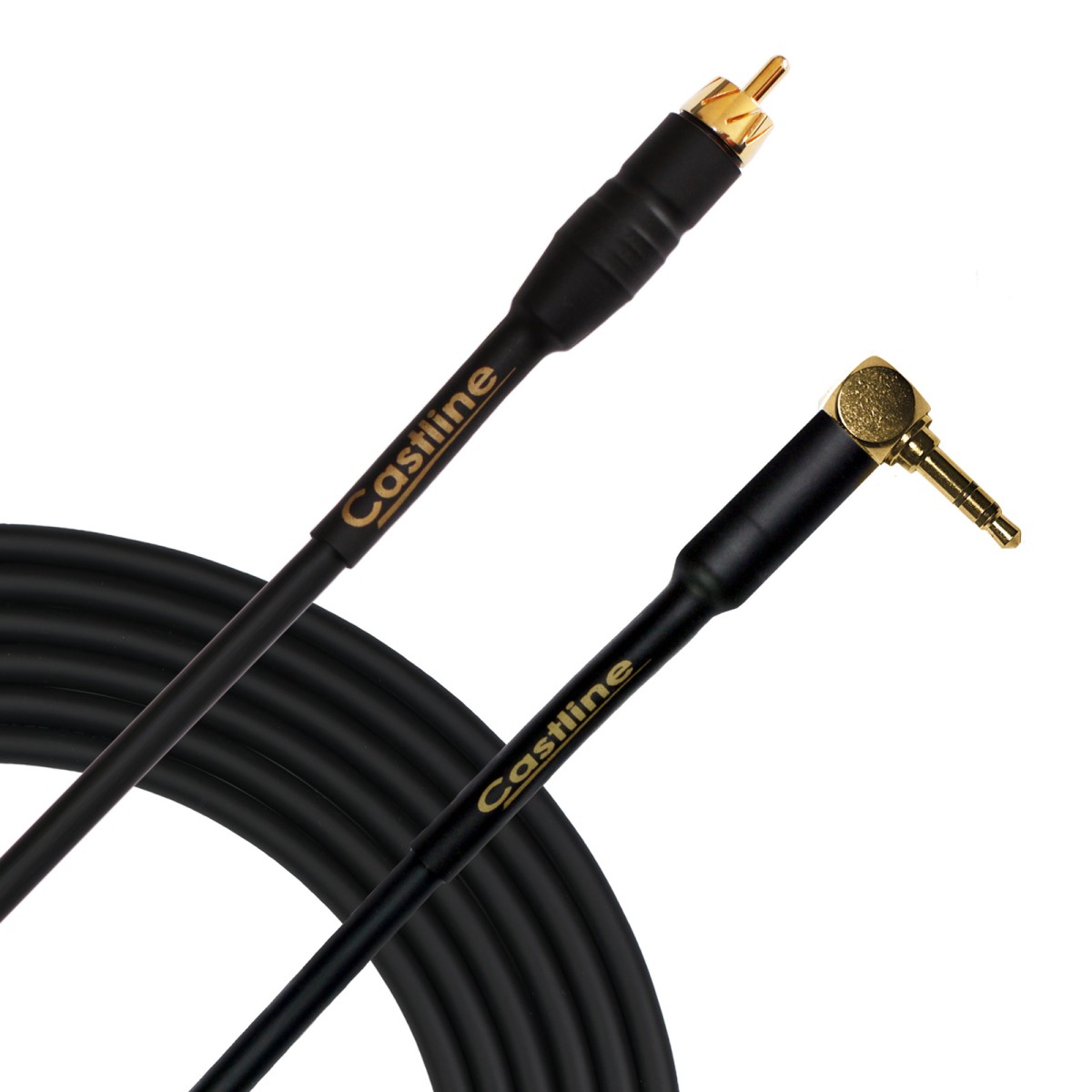

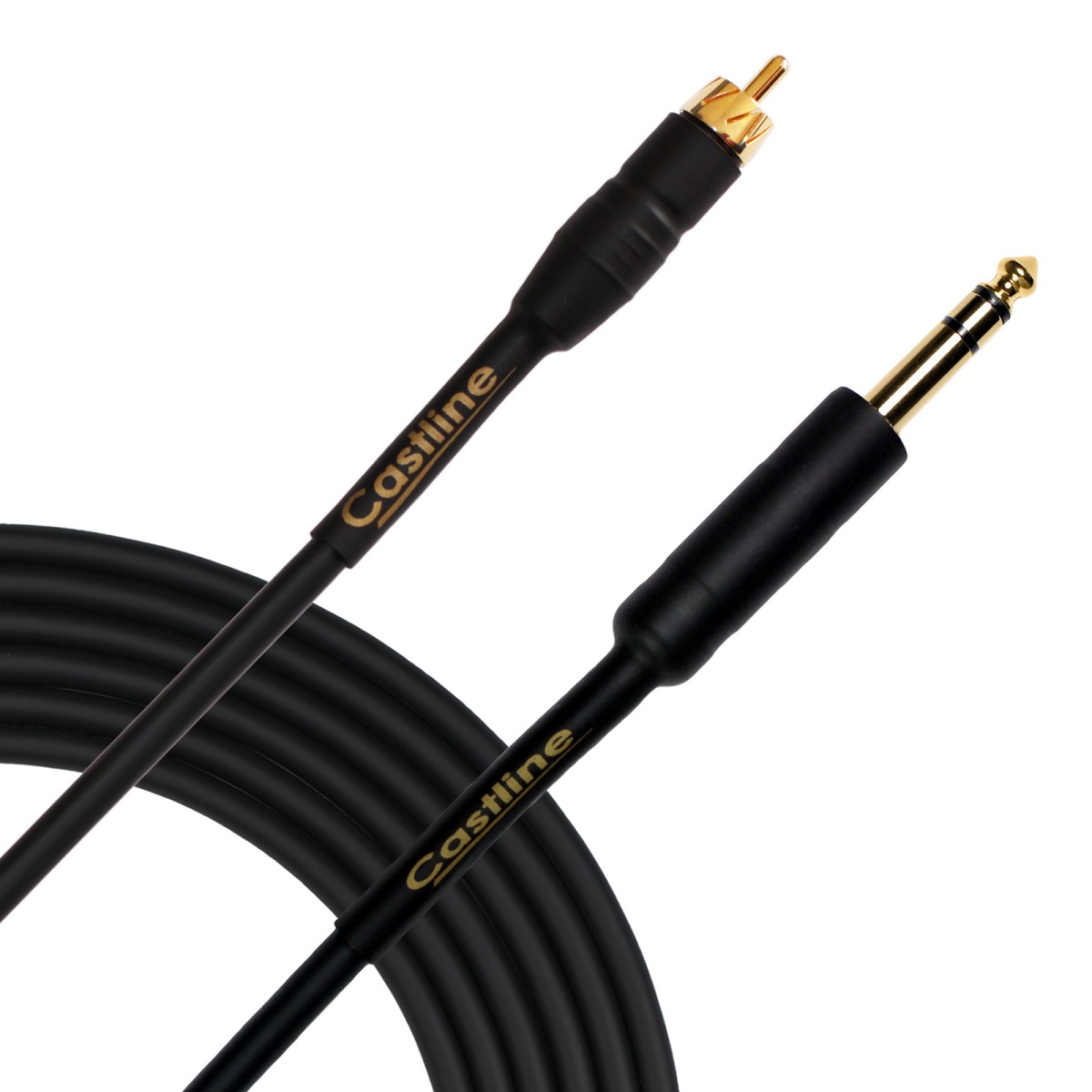

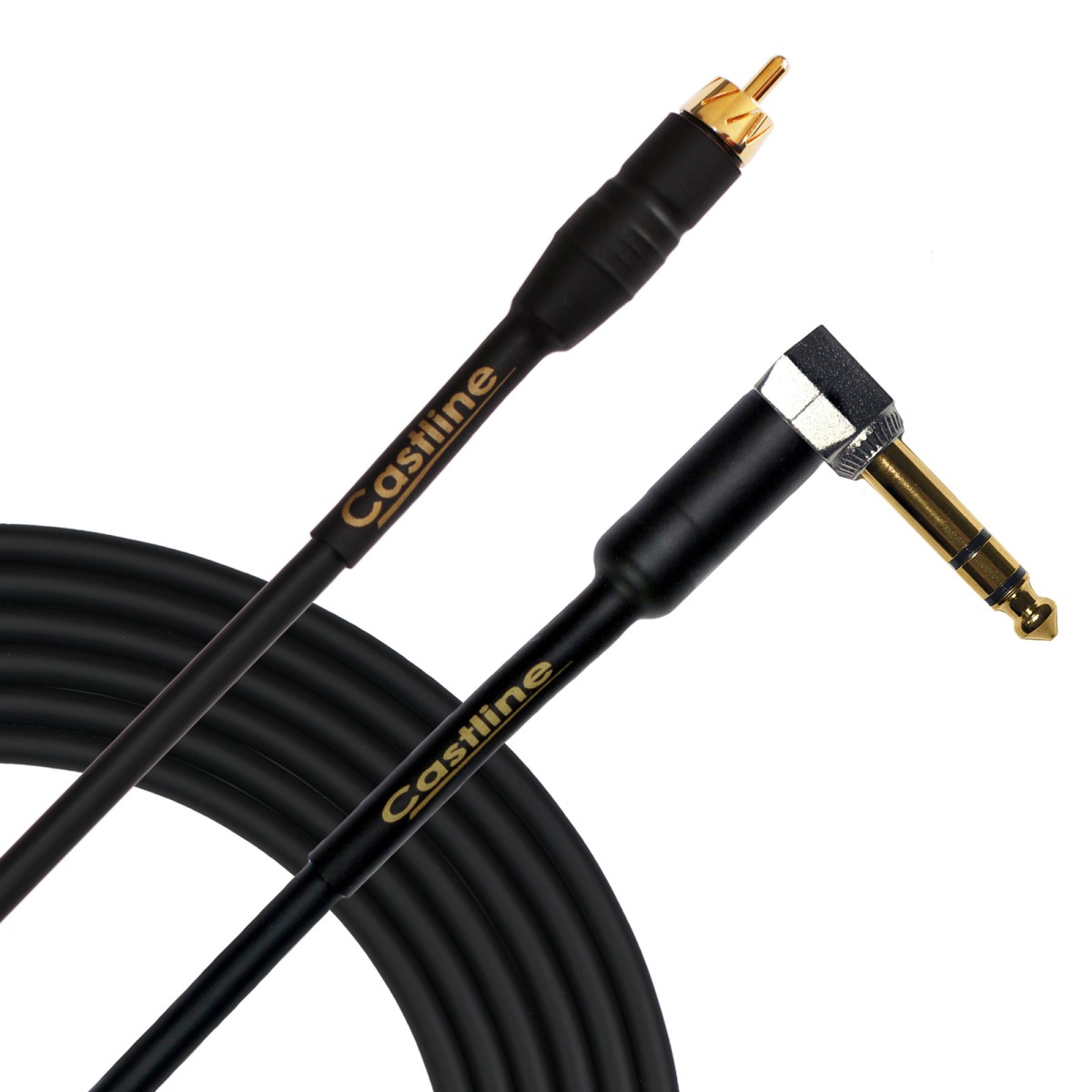

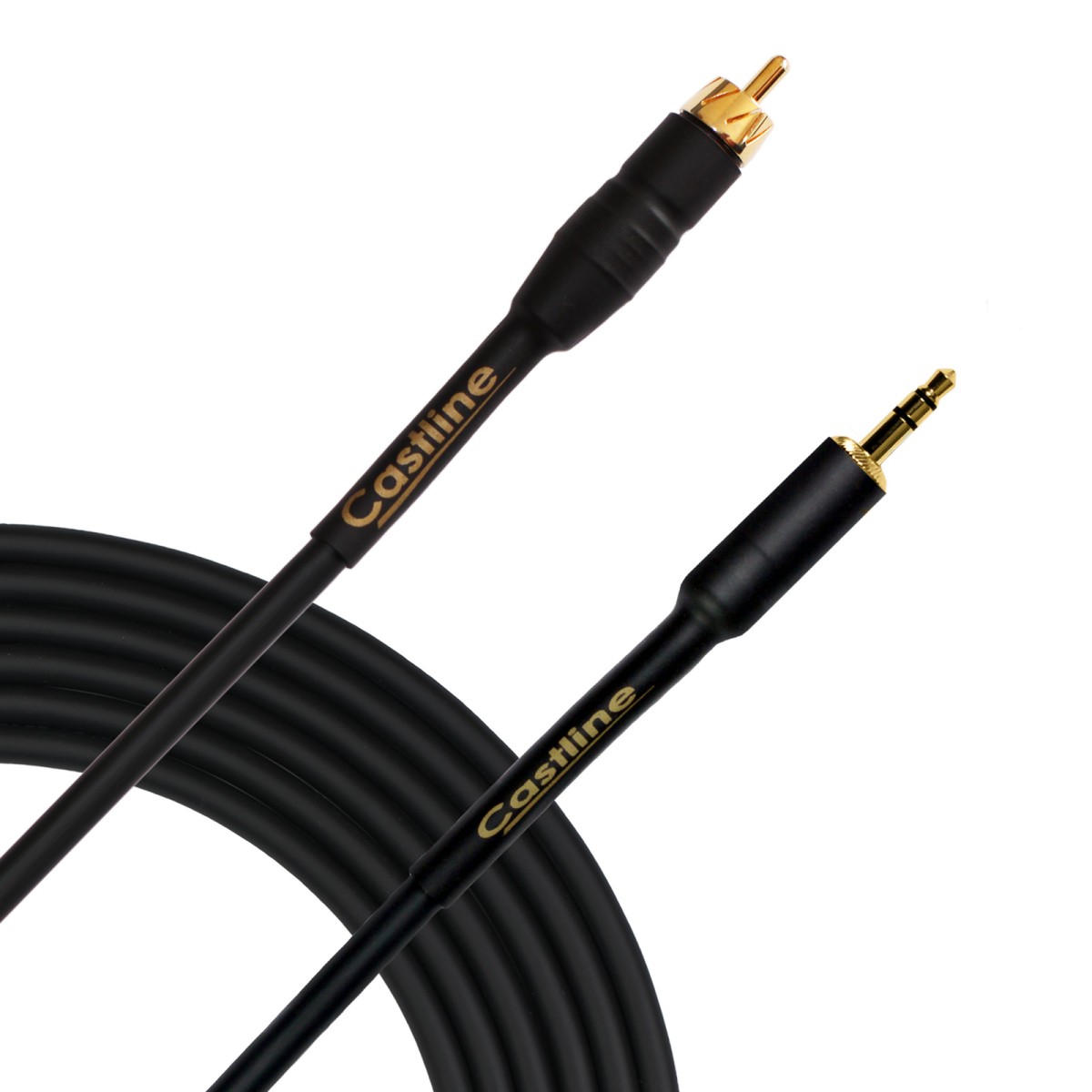

Castline Gold patch cable TRS to RCA summing left and right channels from single stereo output to mono input with resistors (1k ohm). Mogami OFC Neglex W2549.
This cable is needed to connect MP3 players, portable CD players, cell phones, and other devices which haveTRS output to amplifier, mixer, PA systems and other devices wich have RCA input.
We use resistors to prevent the signals from back-feeding into each other. This prevents there from being distortion or noise issues, as well as preventing damage to your output device.
All Cables Made in the USA
*If you need this cable in another length, please contact us.
Connector:
- Model: Castline TRS connectors
- TRS Stereo Gold Plated Tip, Ring, Sleeve (for maximum connectivity)
- Heavy Duty Design.
- Model: CT110M
- Castline RCA Male Gold.
- Gold Plated Connectors for Maximum Connectivity.
- Heavy Duty Metal Construction.
Cable:
- Mogami W2549 Neglex Balanced Wire. Made in Japan
- 2 Coper Conductors -22 AWG
- Cable Diameter: 6.0mm (0.236")
- Flex Life: 14500 Cycles.
- Tensile Strength: 657 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 6.0ø (0.236 inch) |
| Cable Part No. : | Mogami W2549 Neglex |
| Cable type: | Unbalanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.339mm² (#22AWG) |
| Flex life: | 14500 |
| No. of conductor: | 2 |
| Tensile strength: | 657 N |
| Connector characteristics | |
| Connector part No. : | RCA- CT110M; TS- CT103G |
| Connector type: | RCA male; 1/4" TS male |
| Contacts coating: | Gold plated |
