PLEASE: Make sure, before purchase, that the XLR input is Mono.

No Hum. No Frequency Loss. No Hardware Damage

Great for connection portable players (MP3, iPod, iPad, Android, Laptop etc.) or any 3.5mm audio output to a powered speaker.

Comes with 1 kOhm resistors. See picture of soldering scheme.

Combines 3.5mm Left and Right Channels Into XLR Single Mono Feed (See Diagram)

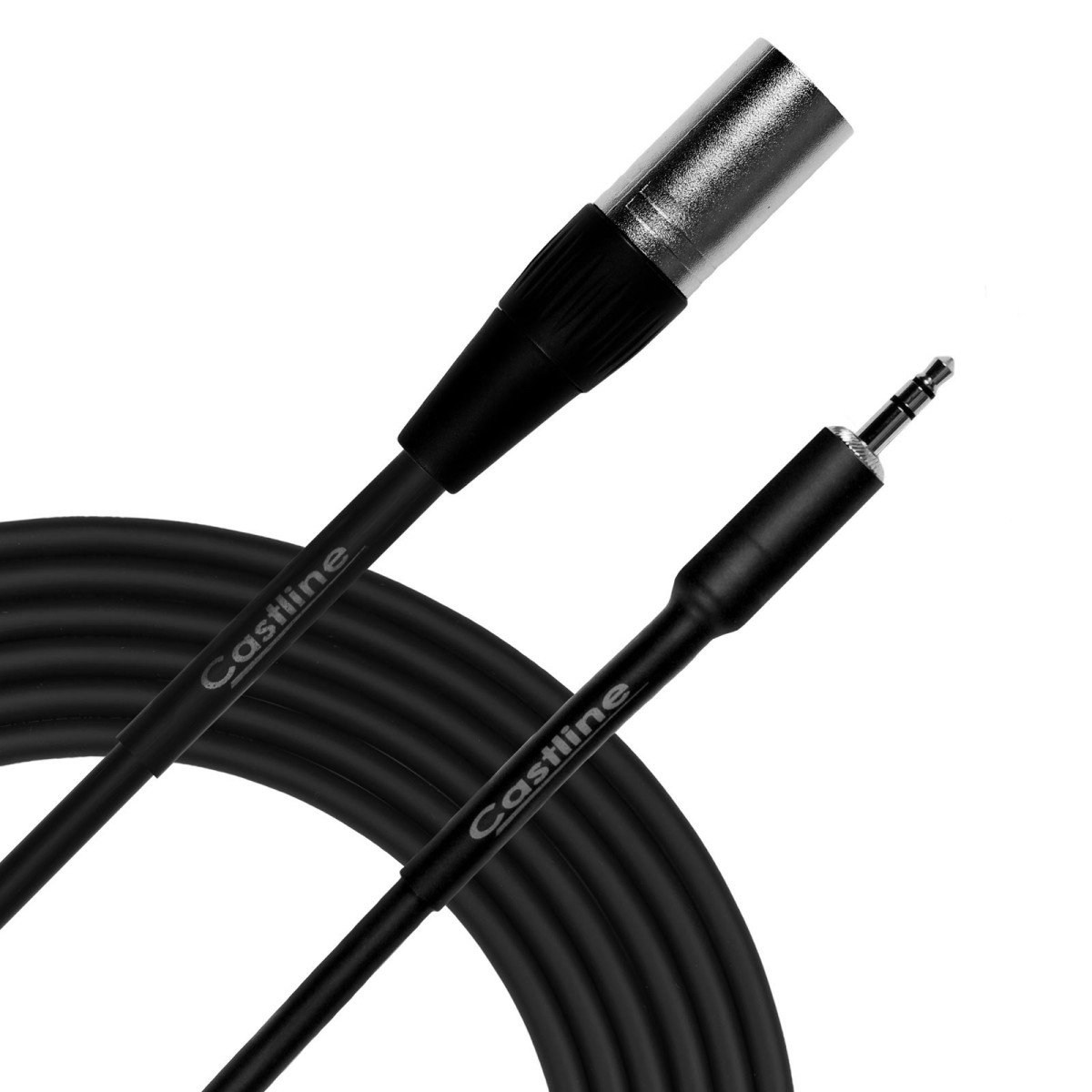

Castline silver 3-pin XLR-male (female) to 3.5mm TRS-male connector. Mogami W2582 OFC flexible low nose wire (XLPE insulation and a strong rubber - like outer jacket makes this cable ideal where a durable and flexible cable is needed)

We use resistors to prevent the signals from back-feeding into each other. This prevents there from being distortion or noise issues, as well as preventing damage to your output device.

Cables Made in the USA

*If you need this cable in another length please contact us.

Connectors:

- Model: CT105S

 - Castline XLR-M, XLR-F Silver.

- 3-Pin Nickel Plated Connectors.

- Heavy Duty Metal, Plastic and Polyurethane Construction.

- Boot with polyurethane gland gives high protection to cable bending stresses.

- Model: CT109S Stereo

 - Castline 3.5mm TRS Silver.

- Nickel Plated Contacts.

- Heavy Duty Metal Construction.

Cable:

- Mogami W2582 OFC Low Nose Wire, Made in Japan.

- 2 Coper Conductors -26 AWG

- Cable Diameter: 6.0mm (0.236")

- Flex Life: 13800 Cycles.

- Tensile Strength: 441 N

(Please see the last image for full specifications)
