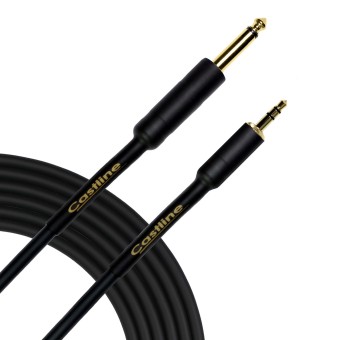

Castline Gold patch cable 3.5mm TRS-straight to 1/4mm TS-straight. Mogami OFC Neglex W2549.
PLEASE NOTE: This cable does not have connection to the ring (see image with soldering scheme)
Cables assembled in the USA
*If you need this cable in another length please contact us.
Connector:
- Model: Castline CT109G Stereo
- 3.5mm TRS Stereo Gold Plated Tip, Ring and Sleeve (for maximum connectivity)
- Heavy Duty Design.
- Model: CT103G Mono
- Castline 1/4" TS Gold Plated Tip and Sleeve (for maximum connectivity)
- Heavy Duty Metal Construction.
Cable:
- Mogami W2549 Neglex Balanced Wire, Made in Japan.
- 2 Coper Conductors -22 AWG
- Cable Diameter: 6.0mm (0.236")
- Flex Life: 14500 Cycles.
- Tensile Strength: 657 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 6.0ø (0.236 inch) |
| Cable Part No. : | Mogami W2549 Neglex |
| Cable type: | Balanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.339mm² (#22AWG) |
| Flex life: | 14500 |
| No. of conductor: | 2 |
| Tensile strength: | 657 N |
| Connector characteristics | |
| Connector part No. : | CT109G / CT103G |
| Connector type: | 1/8 TRS ; 1/4 TS |
| Contacts coating: | Gold Plated |
