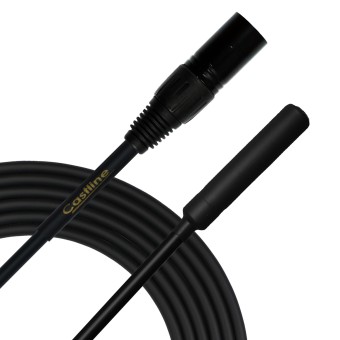

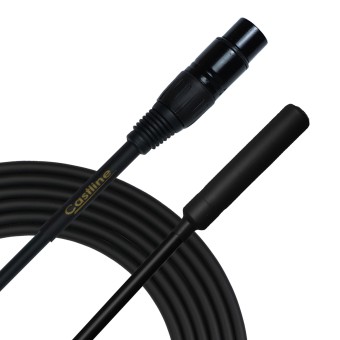

Castline Gold 3-pin 1/4" XLR-male/female to 1/4" TS-male female connectors.
Mogami W2549 has been designed using famous Mogami Neglex OFC to provide the highest quality audio reproduction in any recording application. It features #22AWG conductors and extremely low capacitance. The 100% coverage served shield and twisted pair construction is excellent at preventing noise caused by electromagnetic interference. This cable is recommended when extended high frequencies are important or where long cable runs may be needed.
Cables good as microphone cables for connecting equalizers, mixers, crossovers, amplifiers and other equipment that requires a balanced 3 pin XLR connection.
Cables assembled in the USA
*If you need this cable in another length please contact us.
Connectors:
- Model: CT105G
- Castline XLR-M, XLR-F Gold.
- 3-Pin Gold Plated Connectors for Maximum Connectivity.
- Heavy Duty Metal, Plastic and Polyurethane Construction.
- Boot with polyurethane gland gives high protection to cable bending stresses.
- Model: Castline CT103GF
- 1/4" TS Female Gold Plated Tip and Sleeve (for maximum connectivity)
- Heavy Duty Design.
Cable:
- Mogami W2549 OFC Neglex Microphone Wire, Made in Japan.
- 2 Coper Conductors -22 AWG
- Cable Diameter: 6.0mm (0.236")
- Flex Life: 14500 Cycles.
- Tensile Strength: 657 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 6.0ø (0.236 |
| Cable Part No. : | Mogami W2549 Neglex |
| Cable type: | Balanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.339mm² (#22AWG) |
| Flex life: | 14500 |
| No. of conductor: | 2 |
| Tensile strength: | 657 N |
| Connector characteristics | |
| Connector part No. : | CT105G CT103G |
| Connector type: | XLR-M and XLR-F / 1/4 TS female |
| Contacts coating: | CT105G - gold plated / CT103GF with gold plated tip and sleeve |
