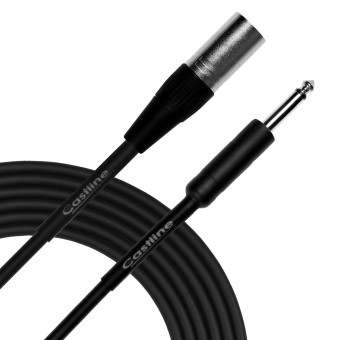

Castline silver 3-pin XLR-male (female) to 1/4" TS-male connector. Cable with balanced high flexible (13800 cycles) Mogami W2582 flexible low nose wire (XLPE insulation and a strong rubber - like outer jacket makes this cable ideal where a durable and flexible cable is needed)
Cables Made in the USA
*If you need this cable in another length please contact us.
Connectors:
- Model: CT105S
- Castline XLR-M, XLR-F Silver.
- 3-Pin Nickel Plated Connectors.
- Heavy Duty Metal, Plastic and Polyurethane Construction.
- Boot with polyurethane gland gives high protection to cable bending stresses.
- Model: CT103S Mono
- Castline 1/4" TS Silver.
- Nickel Plated Contacts.
- Heavy Duty Metal Construction.
Cable:
- Mogami W2582 OFC Low Nose Wire. Made in Japan
- 2 Coper Conductors -26 AWG
- Cable Diameter: 6.0mm (0.236")
- Flex Life: 13800 Cycles.
- Tensile Strength: 441 N
(Please see the last image for full specifications)
| Cable characteristics | |
|---|---|
| Cable diameter (mm): | 6.0ø (0.236 inch) |
| Cable Part No. : | Mogami W2582 |
| Cable type: | Balanced |
| Color: | Black |
| Conductor material: | Copper |
| Conductor size: | 0.135mm² (#26 AWG) |
| Flex life: | 13800 |
| No. of conductor: | 2 |
| Tensile strength: | 441 N |
| Connector characteristics | |
| Connector part No. : | CT105S CT103S |
| Connector type: | XLR-M or XLR-F / 1/4 TS |
| Contacts coating: | Nickel plated |
